iCAC4000 State information access controller is based on the State Grid Corporation issued the "Q / GDW 561-2010 power transmission equipment condition monitoring system technical guidelines" requirements for the design, the main function is to receive transmission lines or substations within the monitoring device status information , And they are standardized control of the equipment。

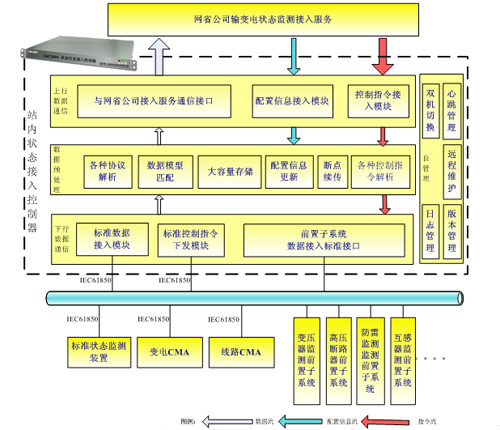

        iCAC4000 Status information access controller functions include: power transmission and transmission of online monitoring device information access; to the standard monitoring device or CMA issued control instructions; state information forwarding; data cache and resume; remote data call; large capacity data Local storage; self-management; system clock synchronization。


Technical features:
● low power consumption, no fan, full shield, high reliability;
● Wide operating temperature, in the & ndash; 40 ℃ ~ +85 ℃ within the normal work;
● Embedded LINUX real-time operating system;
● using MySQL5.1 database system;
● Dual Gigabit Ethernet port, using the standard IEC61850 communication protocol, compatible with Modbus, IEC104, CDT protocol, etc .;
● 2-channel RS485 interface (maximum support baud rate 115200bps), 2-channel RS232 interface (maximum support baud rate 115200bps) and 2-channel CAN2.0B interface (maximum support baud rate 1Mbps);
● support SNTP network pair and B code when the fiber pair;
● support I1 / I2 interface;
● As IEC 61850 client, 50 servers can be connected at the same time. As IEC 61850 server, 10 client connection requests can be accepted at the same time.
